Induction Heated Jacket Rol®

Roller/Core   Heating Roller
Tokuden Co., Ltd.
誘導発熱ジャケットロール

Characteristics:
Achieves nearly 100% thermal efficiency via induction heating without the need for any special incidental equipment.

Compared with other types of heated rolls, this type realizes major energy savings. Energy saving, clean, low-maintenance

-Clean and maintenance free
-Realizes a uniform surface temperature profile

Applications
Industrial heated rolls

Specifications:
-Roll Dimensions: outer diameter 50 to 3,000 mm, face length 100 to 10,000 mm
-Temperature: room temperature to 400ºC
-Temperature Profile Precision: ±0.5ºC to ±2ºC
-Surface Treatments: hard chrome plating, rubber lining, Teflon coating, etc.

Contact Information：
40 Nishinorikyucho, Yamashina-ku, Kyoto 607-8345 Japan
TEL.+81-75-581-5691  FAX.+81-75-581-1596
Email：
URL：http://www.tokuden.com/

Sales Office：
Makino Plant
87 Terakubo, Makino-cho, Takashima, Shiga 520-1834 Japan
Tel: +81-740-27-2111 Fax: +81-740-27-1839
Tokyo Sales Office
2-7-1 Shinyokohama, Kohoku-ku, Yokohama, Kanagawa 222-0033 Japan
Tel: +81-45-475-5120 Fax: +81-45-475-5127

Products：
Induction Heated Roll, Heating Roll
To request detailed materials on the above product, please click the contact button below.


Mid-frequency Induction Heater / IH Pot®

Environment Related Equipment   Induction Heating System
Tokuden Co., Ltd.
中周波誘導加熱装置

Characteristics:
-Using induction heating at commercial frequency to mid-frequency magnetic fields, the metal is heated at high precision to a stable temperature
-Multiple variations allow for application to many areas, including cylindrical furnaces, rings, and fluid/gas flow channels
-Although the coast is low, problems observed with high-frequency induction heating, such as noise, are not observed

Applications:
Heating of various metals, caldrons, furnaces, containers, fluids, and gasses

Specifications:

Power Source Pulse Number three-phase or single-phase
Frequency 50 Hz or 60 Hz
Voltage 200 V, 220 V, 380 V, 400 V, 440 V
*3 kV, 3.3 kV, 6 kV, 6.6 kV are also applicable
Output Frequency Maximum of 1,000 Hz at 1 to 27.5 kVA
Maximum of 500 Hz at 30 to 350 kVA
Triple frequency (150/180 Hz)
Capacity 1 to 350 kVA

Contact Information：
40 Nishinorikyucho, Yamashina-ku, Kyoto 607-8345 Japan
TEL.+81-75-581-5691  FAX.+81-75-581-1596
Email：
URL：http://www.tokuden.com/

Sales Office：
Makino Plant
87 Terakubo, Makino-cho, Takashima, Shiga 520-1834 Japan
Tel: +81-740-27-2111 Fax: +81-740-27-1839
Tokyo Sales Office
2-7-1 Shinyokohama, Kohoku-ku, Yokohama, Kanagawa 222-0033 Japan
Tel: +81-45-475-5120 Fax: +81-45-475-5127

Products：
Induction Heated Roll, Heating Roll
To request detailed materials on the above product, please click the contact button below.


Hybrid Roll® (Induction Heated Jacket Roll with Cooling Ability)

Roller/Core   Heating Roller
Tokuden Co., Ltd.
ハイブリッドロール（冷却機能付 誘導発熱ジャケットロール）

Characteristics:
-A water mist cooling function has been added to the Induction Heated Jacket Roll
-Rapid temperature setting changes are possible
-Even when there is heat input from a load, the roll consistently maintains the desired temperature setting.

Applications:
Industrial Heating Rolls

Specifications:
-Roll Dimensions: outer diameter 50 to 3,000 mm, face length 100-10,000 mm
-Temperature: 300 to 100ºC
-Temperature Profile Precision: ±0.5ºC to ±2ºC
-Surface Treatments: hard chrome plating, rubber lining, Teflon coating, etc.

Contact Information：
40 Nishinorikyucho, Yamashina-ku, Kyoto 607-8345 Japan
TEL.+81-75-581-5691  FAX.+81-75-581-1596
Email：
URL：http://www.tokuden.com/

Sales Office：
Makino Plant
87 Terakubo, Makino-cho, Takashima, Shiga 520-1834 Japan
Tel: +81-740-27-2111 Fax: +81-740-27-1839
Tokyo Sales Office
2-7-1 Shinyokohama, Kohoku-ku, Yokohama, Kanagawa 222-0033 Japan
Tel: +81-45-475-5120 Fax: +81-45-475-5127

Products：
Induction Heated Roll, Heating Roll
To request detailed materials on the above product, please click the contact button below.

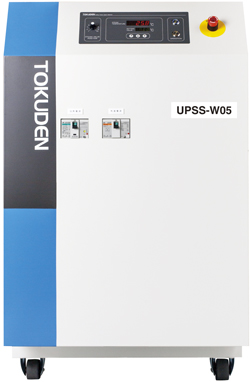

Utility Power Super Steamer ®(UPSS)

Environment Related Equipment   Superheated Vapor Generator
Tokuden Co., Ltd.
tokuden_upss

Product Name: Utility Power Super Steamer (UPSS)
Characteristics:
-Induction heated super steam generation system based on an original transformer structure
-Generates superheated steam of a maximum 1200ºC at a high heat exchange efficiency of greater than 95%
-Using induction heating with a commercial frequency power source, the system is low cost and is not subject to boiler regulations and the Radio Act

Applications:
Heating, post-coating drying, surface treatment, machine component drying, degreasing, annealing

Specifications:
Steam Generation Volume: 2.5 to 200 kg/hr (31 models)

Steam Pressure: 0.15 MPa

Power Input: 3 phase 50/60 Hz 200/220 V
Heating Capacity: 3 to 310 KW
Startup Time: approx. 20 min. at700℃
Efficiency: greater than 95%  (not applicable to some models)

Contact Information：
40 Nishinorikyucho, Yamashina-ku, Kyoto 607-8345 Japan
TEL.+81-75-581-5691  FAX.+81-75-581-1596
Email：
URL：http://www.tokuden.com/

Sales Office：
Makino Plant
87 Terakubo, Makino-cho, Takashima, Shiga 520-1834 Japan
Tel: +81-740-27-2111 Fax: +81-740-27-1839
Tokyo Sales Office
2-7-1 Shinyokohama, Kohoku-ku, Yokohama, Kanagawa 222-0033 Japan
Tel: +81-45-475-5120 Fax: +81-45-475-5127

Products：
Induction Heated Roll, Heating Roll
To request detailed materials on the above product, please click the contact button below.
