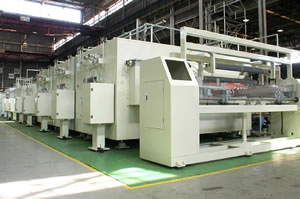

This steel belt casting system with unique functions was developed to meet the thickness uniformity and smoothness requirements demanded of high-precision/advanced films. Using a clean tenter device with a uniform temperature (max. 450ºC) and air speed profile as a post-film forming thermal treatment, the system is suited to the manufacture of high-value films and sheets.

Applications:
Film Forming: engineering plastic films (PI, PC, TAC, etc.)

Specifications:
Machine Speed: 0.5 to 100 m/min
Steel Belt: ultra-mirror finish endless steel belt
Belt Width: 2,600 mm (max.)
Tenter: hot air/IR types
Thermal Treatment Temperature: 450ºC (max.)

This clean pilot coater/dryer developed based on years of results and experience with advanced coating systems meets the needs of the user. The machine is manufactured in line with the C5 concept essential to high-quality coating/drying being proposed by Techno Smart.

The C5 concept is:
C1: cassette change coater head
C2: closed coating fluid supply
C3: class 100 cleanroom standard
C4: compact for reduced space, energy, and running costs
C5: computerized for increased yield via a user friendly interface

Given these features, the clean pilot coater handles a wide range of applications, from development, to prototyping and production for many of our users. Our Shiga plant has the following permanent test machines, which can be used for development, prototyping, and specification confirmation.

Specifications:
Roll Width: 750 mm
Machine Speed: 60 m/min (max.)
Coater: various coaters (cassette change type)
Drying: 200ºC (max.)

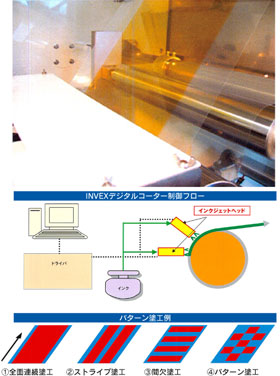

The digital coater is a newly developed coater head by Techno Smart that applies inkjet technology to coating. By applying inkjet to coating technology, advantages lie in contactless coating, digital control coating, closed coating, and compact coating, for example. These will naturally allow for coating in future printable electronics fields, but also for coating in the biotechnology and medical fields. Our Shiga plant has a permanent roll-to-roll test coater, which can be used for development, fluid evaluation, and coating tests.

Applications:
Fluid development, new product development, medical related, printable electronics, photovoltaic cells, OEL related

Specifications:
Coating Speed: 1 to 60 m/min
Coating Viscosity: 6 to 12 mPa• s
Coating Thickness 3 to 10 μm (wet)

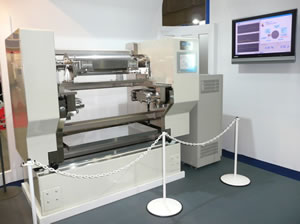

There are various needs for thin-film and high-precision coating in various fields, such as optical applications and others. The high-precision coater Techno Smart developed to meet these needs uses a coating unit developed and investigated the high-precision of roller and bearing. Further, We have a permanent high-precision test coater in our Shiga Plant cleanroom, which can be used to confirm the performance of Techno Smart’s various high-precision die heads.

Applications:
Optical and functional films, battery manufacture related, medical products, electronics materials, photovoltaic cells, OEL related

Specifications:
Roll Width: 750 mm
Coating Speed: 60 m/min (max.)
Coating Type: cassette change type
Coating Methods: die coating (slit die, VCD, 2-layer die, intermittent dies, etc.)

Using a multi-stage slit structure, the coater can realize simultaneous wet-on wet coat single or multiple layers. A vacuum structure comes standard, so coating at a sufficient gap clearance is possible. Our high-precision die processing technology and high-precision mounting technology, allows for a high-precision die coater using a cassette change method. Further, we can also produce special dies with internal structures that reflect the flow characteristics of the coating fluid.

Applications:
Special functional films and materials

Specifications:
Coating Speed: up to 200 m/min
Viscosity Range: 1 to 20,000 mPa• s
Thickness Range: 1 to 100 μm wet
Roll Width: Contact us for details

Based on the extensive experience Techno Smart has with clean coaters, we developed this miniature coating/drying system for research and development purposes. Various high-performance coater heads can be chosen from the large variety of coater head variations, which can be exchanged using the cassette change mechanism depending on the application. Further, various dryer methods can be chosen from the dryer variations. A unique nozzle exchange system allows for the dryer method to be easily chosen to meet the application.

Applications:
Laboratory and development applications

Specifications:
Roll Width: 300 mm
Speed: 0.5 to 3 m/min
Dryer: 1.5 mL/1 ch
