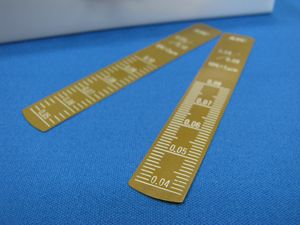

Precision Slit Measuring Taper Gauge (patented)

Kohshin Engineering Co., Ltd.
精密テーパーゲージ

Characteristics:
-It is possible to precisely measure the die slit by simply inserting the gauge into the slit and reading the gradations
-One gradation is 1 μm!
-The special resin used as the gauge material prevents the gauge from damaging the part to be measured while having wear resistance (patented)
-We can customize the gauge for all needs, from precision level to measurement range, depending on the purpose and application
-The cost is far less than that for image measurement systems integrated with a CCD camera (standard price, 200,000 JPY and up).


Contact Information:
1-22-7 Matsue, Edogawa-ku, Tokyo 132-0025 Japan
TEL.+81-3-3655-8815  FAX.+81-3-3656-7670
Email:
URL:http://www.kohshin-e.co.jp/

Sales Office:

Products:
NLPD T-dies for Laminators, Coating Dies, Taper Gauges, Die Overhauling and Maintenance

To request detailed materials on the above product, please click the contact button below.

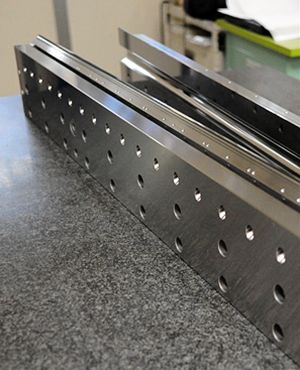

Ultra-precision Coating Die

Kohshin Engineering Co., Ltd.
超精密コーティングダイ

Characteristics:
By bringing together our engineering staff with more than 60 years of experience in metal processing and high-precision grinding, with our dedicated die coating engineers with their know-how on die design, we have been highly recognized for out ability to meet the difficult needs of our customers.

-Precision Performance
Material: SUS316L
Slit Deviation: within 2 μm/1,700 mm length
Tip Surface Straightness: within 2 μm/1,700 mm length
Tip Surface Roughness: Rz 0.130 (realized via an ultra-precise grinding lathe and our proprietary whetstone)

-The material for our dies can either be magnetic (SUS630, etc.) or nonmagnetic (SUS316, etc.)
-Our dedicated die coating engineers also handle proposals for die channel structures and design
-We also overhaul, repair damage to, and alter coating dies (slot dies) manufactured by other makers


Contact Information:
1-22-7 Matsue, Edogawa-ku, Tokyo 132-0025 Japan
TEL.+81-3-3655-8815  FAX.+81-3-3656-7670
Email:
URL:http://www.kohshin-e.co.jp/

Sales Office:

Products:
NLPD T-dies for Laminators, Coating Dies, Taper Gauges, Die Overhauling and Maintenance

To request detailed materials on the above product, please click the contact button below.
